Insert first.
Place the inflated AyrSupport in your open travel cover. Seat the bottom corners in the base and the top corners fully in the cover.
Let’s get you inflated.
Choose your nozzle. Hold to unlock. Press to start.
1
Two look alike. Use this one.
✓ Use this oneTaller cone.
Smaller opening.
Smaller opening.
× Not this oneShorter cone.
Wider opening.
Wider opening.
Match the shape: taller cone, smaller opening, snug fit.
2
Unlock. Then start.
- 1Hold 3 seconds
Hold the side power button until the light flashes, then release.
- 2Press once
The pump starts. Press once again to stop.
Before you pack: lock the pump.
With the pump off, hold 3 seconds until the light flashes. This helps prevent accidental starts during travel.
Still won’t turn on? Charge with the included USB-C cable, then try again.
3
Connect & inflate.
- Push the nozzle into the side port of the pump.
- Lay AyrSupport flat, open the valve cap, and insert the nozzle snugly.
- Unlock and start the pump. Inflate until AyrSupport feels firm.
- Press once to stop. Remove the nozzle and close the valve cap.
The pump won’t stop automatically. Stop when firm; do not overinflate. Keep the top air inlet clear.
4
Pack your clubs.
Golf bag second.
Open AyrSupport fully and lower your golf bag into the center. Make sure your clubs are surrounded.
Close & zip.
Fasten AyrSupport’s Velcro closures around your bag, then zip the travel cover closed.
A little extra help.
The nozzle wobbles or air leaks.
Use the taller cone with the smaller opening, and seat it snugly in both the pump’s side port and the AyrSupport valve.
The pump still won’t start.
Charge it using the included USB-C cable and a 5V USB power source. The manual specifies 3 hours before first use. A red low-power light means less than 5% battery remains.
After charging, hold the side power button for 3 seconds until the indicator flashes, release, then press once. The separate button underneath controls the camping light.
The fit is tight or AyrSupport won’t close.
Reposition the top and bottom corners. If needed, release a little air, seat everything, and reinflate slightly. Put sharp or loose items inside your golf bag before packing.
Designed for stand, carry, and most hybrid bags. Not designed for cart or tour bags.
How do I deflate and put it away?
Open the valve cap and press the center button inside the valve. Gently press and fold AyrSupport as air exits. Release the button when finished.
To lock the pump for travel, turn it off, then hold its power button for 3 seconds until the indicator flashes.
Pump runtime and cooling
Limit continuous use to 5 minutes, then let the pump cool for more than 5 minutes before using it again.

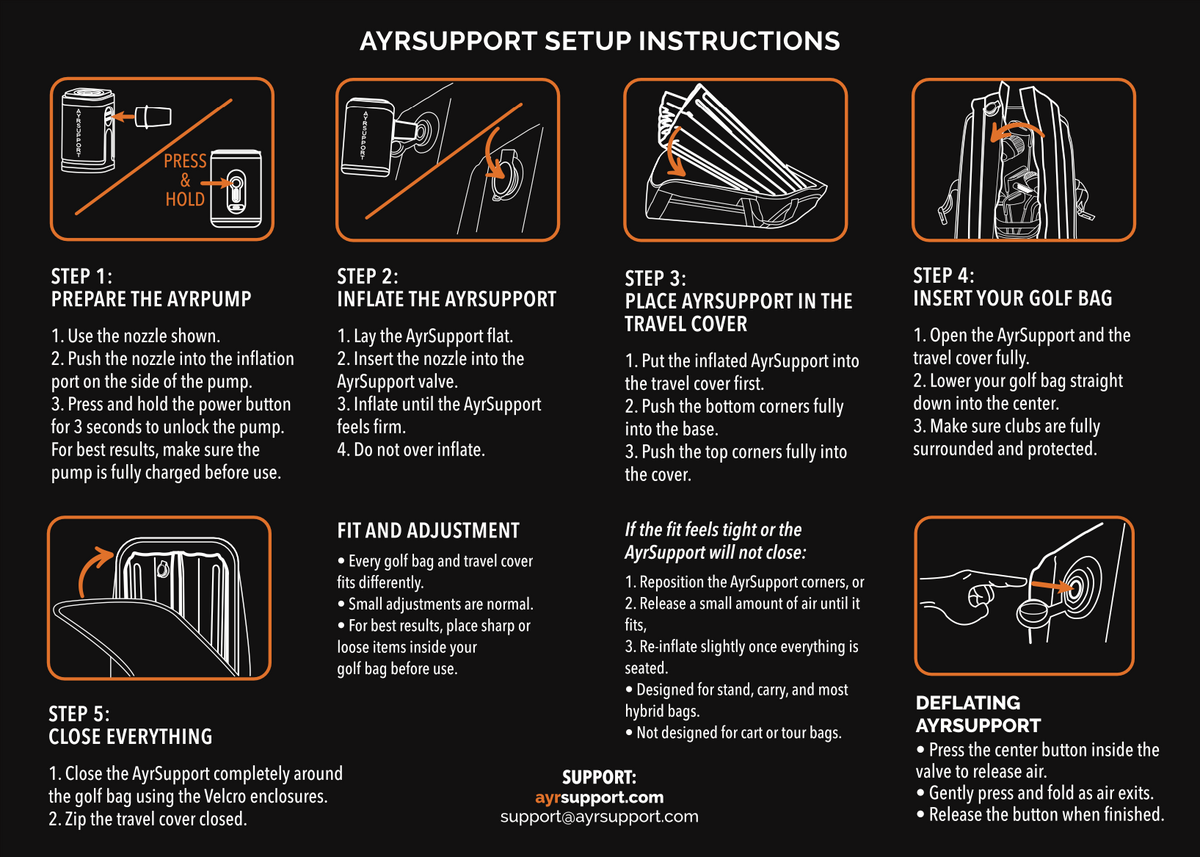

View the full installation card
